How Do Solar Batteries Work? Follow the Electron from Your Roof to Your Kettle

Right now, on a clear Tuesday afternoon in suburban Brisbane, a photon of sunlight is smacking into a silicon cell on someone's roof. That collision knocks an electron loose, and that electron starts moving. In the next fraction of a second, it will travel through wiring, get its voltage flipped by an inverter, and either power a ceiling fan, get stored in a solar battery, or get shipped off to the grid for about five cents. What happens to that electron, and who gets the value from it, is the entire story of how solar batteries work.

This guide follows the energy from the moment sunlight hits your panels through every decision point in the system: where does it go, what converts it, what stores it, and what brings it back when you need it at 8pm. By the end, you'll understand not just how batteries work but why some work better than others.

At EnergyLIB, we're Australia's first home energy brand designed exclusively for the home. The LIB HomeStack uses LFP chemistry, 100% depth of discharge, and a battery management system that handles the science in the background so you don't have to. But understanding the basics helps you make a smarter buying decision, so let's trace that electron.

Quick Answer: How Do Solar Batteries Work

Quick Answer: How Solar Batteries Work

• Solar panels generate DC electricity. Sunlight hits silicon cells, knocking electrons loose and creating direct current (DC) electricity.
• An inverter converts DC to AC. Your home runs on alternating current (AC). The solar inverter or hybrid inverter converts the DC power into usable AC electricity.
• Excess energy charges the battery. When your panels produce more than your home uses, the surplus is stored in the battery instead of being exported to the grid.
• The battery powers your home at night. After sunset, the battery discharges stored energy to run your appliances, reducing how much grid electricity you buy.
• During a blackout, the battery provides backup. A properly configured battery disconnects from the grid and powers your home independently.

Part 1: How Solar Panels Create Electricity

Your rooftop solar panels are made up of photovoltaic cells, typically silicon wafers treated to create an electrical field. When photons from sunlight hit these cells, they knock electrons loose from silicon atoms. Those freed electrons flow through the cell in one direction, creating direct current (DC) electricity.

The amount of DC electricity your panels produce depends on three things: the size of the solar panel array (measured in kilowatts), the intensity of sunlight hitting the panels, and the angle and orientation of the panels relative to the sun. A typical 6.6 kW system in Sydney generates around 25 to 30 kWh on a clear summer day and around 15 to 18 kWh on a winter day. Understanding how much electricity your panels generate compared to your household’s energy consumption is crucial for optimising battery storage and system sizing.

Here’s the important bit: your panels only generate electricity while the sun is shining. No sun, no electrons. This is the fundamental problem that solar batteries solve. They capture the excess solar electricity, also referred to as excess solar power, that your panels produce during daylight hours and hold it for when the sun isn’t there, preventing waste and supporting self-consumption or backup power.

Part 2: The Inverter Converts DC to AC

Your home runs on alternating current (AC) electricity. The grid delivers AC. Your appliances expect AC. But your solar panels produce DC. Something has to translate between the two, and that’s the inverter’s job. In a solar battery storage system, the inverter connects your solar panels and batteries, managing the flow of energy between them and your home.

A solar inverter takes the DC electricity from your panels and rapidly switches its direction back and forth, converting it into the 240V AC that your power points deliver. This conversion happens at 50 cycles per second (50Hz), matching the Australian grid frequency exactly.

There are three types of inverter you’ll encounter in a solar and battery system, and which one you have affects how your battery connects:

A popular example of a hybrid inverter system is the Tesla Powerwall, which integrates battery storage and backup functionality in one unit, and can work with solar inverters to manage energy flow and provide backup power during outages.

The LIB HomeStack pairs with the LIB hybrid inverter, which handles both solar and battery in one integrated unit. This is the simplest and most efficient configuration for new installations. For homes adding a battery to an existing solar system, AC coupling with a separate battery inverter is also supported.

Part 3: How the Battery Charges (Storing Excess Solar Energy)

This is where the magic happens. During a typical weekday, your solar panels are generating peak electricity between 10am and 2pm, but the house might only be drawing a fraction of that if nobody is home. Without a battery, the excess electricity gets exported to the grid for a feed-in tariff of around 5 to 8 cents per kWh.

Inside the battery, the electrical energy is converted into chemical energy. In a lithium ion battery like the LIB HomeStack, lithium ions move from the cathode (positive electrode) to the anode (negative electrode) during charging. They’re held there, storing the energy as chemical potential, until the battery is asked to discharge. The energy stored in the battery can then be used during non-sunny hours, reducing reliance on the grid.

The battery management system (BMS) controls the charging process. It monitors every cell’s voltage and temperature, balances the charge across the pack, and manages the charging rate to protect cell life. A well-designed BMS is why some batteries last 8,000+ cycles while others fade after 3,000. The LIB HomeStack‘s BMS handles all of this automatically, optimising every charge cycle without any input from you.

Part 4: How the Battery Powers Your Home at Night

When the sun sets and your panels stop producing, your home’s electricity demand doesn’t stop. The lights come on, the oven fires up, the TV goes on. Without a battery, all of that evening demand gets met by grid electricity at peak rates (typically 30 to 45 cents per kWh). With a battery, battery power supplies your home using the energy stored during the day, allowing you to keep your appliances running at night without relying on the grid.

The lithium ions that moved to the anode during charging now flow back to the cathode, releasing the energy stored as DC electricity. The inverter converts this back to AC, and it flows through your switchboard to power your home exactly the same way grid electricity would. Your appliances can’t tell the difference.

Homeowners can enhance their solar battery's efficiency and maximise cost-effectiveness by ensuring their battery is properly sized to match their energy consumption patterns. The financial impact is significant: instead of selling surplus solar at 5 cents and buying grid power back at 35 cents, you’re using your own stored energy to save money and reduce energy bills, making the system much more cost effective.

Part 5: How the Battery Interacts With the Grid

A home solar battery system doesn’t replace the electricity grid entirely (unless you’re fully off-grid). It works alongside it. Here’s how solar battery storage work manages energy flows between your solar panels, battery, home, and the grid:

This priority logic is managed automatically by the hybrid inverter and the battery’s management system. You don’t manually switch between sources. The system makes decisions every few milliseconds based on solar production, battery state-of-charge, household demand, and grid availability.

Part 6: How Batteries Provide Backup Power During Blackouts

When a power outage occurs, something counter-intuitive happens: a home with solar panels but no battery also loses power. The solar inverter is legally required to shut down to prevent electricity flowing back into the grid while linesmen are working on it. This is called anti-islanding protection, and it’s a non-negotiable safety requirement in Australia.

Solar batteries protect against blackouts by providing backup power. Some systems require an optional backup box to enable blackout protection, which may come at an additional cost. When the system detects a power outage, it can automatically switch your home from grid power to battery power, ensuring continuous electricity supply. Depending on your needs and the system’s design, a solar battery system can be configured to power either the entire home or just essential circuits during an outage.

Not all battery installations include backup. It requires specific wiring and a compatible inverter at the time of installation. The LIB HomeStack, paired with the LIB inverter, supports backup configurations. If blackout protection matters to you, discuss it with your installer before the battery system is installed, because retrofitting backup later is more complex.

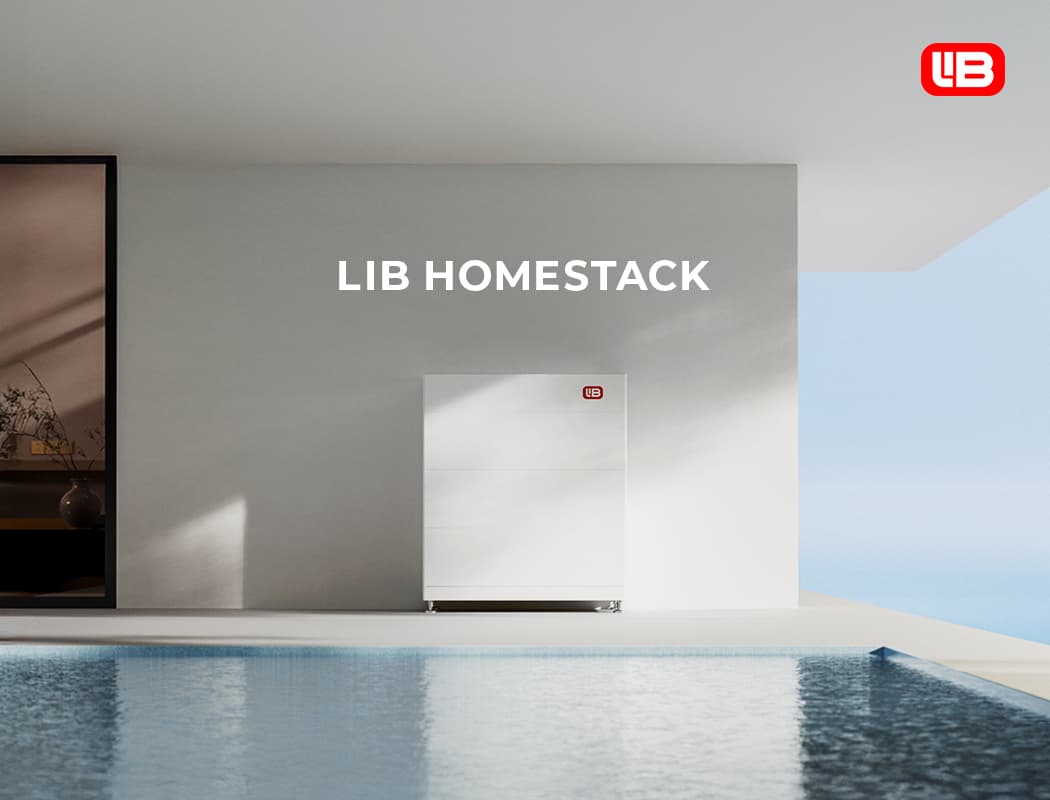

Inside the LIB HomeStack: How the Tech Works Together

• 314Ah LFP cells. Large-format lithium iron phosphate cells store and release energy through lithium ion transfer between cathode and anode.
• Battery Management System. Monitors every cell hundreds of times per second. Balances charge, manages temperature, detects faults, communicates with the inverter.
• 100% depth of discharge. Cell chemistry, BMS design, and system architecture are all engineered to handle full daily cycling without compromising lifespan.
• 48V low-voltage DC system. Safer wiring, simpler integration with existing solar setups, compatible with AC and DC coupling architectures.
• Natural convection cooling. No fans, no moving parts, no maintenance. Operates under 25dB (quieter than a fridge).
• IP65 rated enclosure. Waterproof and dustproof. Install indoors or outdoors without a special housing.
• CEC approved. Listed on the Clean Energy Council approved battery list. Eligible for the federal Cheaper Home Batteries Program rebate.

A Day in the Life: How Energy Flows Through Your Solar Battery System

Here’s what a typical 24-hour cycle looks like for a home with a 6.6 kW solar power system and a 16 kWh battery in Sydney, summer:

How the Federal Rebate Applies

All three LIB HomeStack configurations are CEC approved and eligible for the Cheaper Home Batteries Program, which currently provides around 30% off the upfront cost via small-scale technology certificates. The rebate not only helps homeowners save money on their investment but also shortens the payback period, making battery adoption more cost effective.

For even greater efficiency and reduced overall costs, installing solar panels together with batteries can streamline the process. The rebate tapers from 1 May 2026, with the biggest reductions affecting larger systems (14-28 kWh at 60%, 28-50 kWh at 15%). Installing before that deadline delivers maximum savings.

Put One on Your Wall Before the Rebate Drops

Understanding how solar batteries work is the first step toward making a smart purchasing decision. The science is elegant: sunlight becomes DC electricity, gets converted to AC, charges a battery when you don't need it, and discharges when you do. A good battery management system handles the complexity. A quality LFP cell chemistry handles the heat. And the maths, once you've seen it, makes the case clearly.

The LIB HomeStack is built to do all of this reliably for 22 years. 100% depth of discharge so you access every kWh you paid for. 8,000+ cycles LFP cells engineered for Australian conditions. A BMS that optimises every charge and discharge cycle in the background. Three configurations (16, 32, 48 kWh) to match your household's actual energy usage. CEC approved, rebate-eligible, and distributed through Autra Batteries Australia.

The federal rebate is at peak value until 1 May 2026. After that, the per-kWh discount drops and the effective cost of a battery rises, especially for larger systems. If the science in this article has answered your questions and the economics make sense, the next step is a site assessment.

Book through Autra Batteries Australia or speak with the EnergyLIB team today. Get a quote based on your solar system, your electricity usage, and your goals. Then put a battery on your wall and start keeping those electrons for yourself instead of sending them to the grid for five cents.

FAQs

How do solar batteries store energy?

Solar batteries store energy by converting electrical energy into chemical energy. In a lithium ion battery, lithium ions move from the cathode to the anode during charging, storing energy as chemical potential. When the battery discharges, the ions move back, releasing electrical energy that is converted to AC by the inverter and sent to your home's switchboard. The battery management system controls this process to optimise efficiency and protect cell life.

Do solar batteries work on cloudy days?

Yes. Solar batteries discharge stored energy regardless of weather conditions. On cloudy days, your solar panels produce less electricity and may not fully recharge the battery, but any energy already stored from previous sunny days is available. The battery discharges normally to power your home, and the grid acts as backup if the battery runs low.

What is the difference between AC coupled and DC coupled battery systems?

In an AC coupled system, the battery has its own inverter and connects to the switchboard on the AC side alongside the existing solar inverter. In a DC coupled system, a single hybrid inverter handles both solar and battery, with the battery charging directly from DC solar. DC coupling is more efficient (fewer conversions), while AC coupling is simpler for retrofitting a battery to an existing solar system.

Can solar batteries power a home during a blackout?

Yes, if the battery system is configured for backup power at installation. When the grid fails, the system disconnects from the grid, creates an internal power island, and supplies electricity from the battery. If the sun is up, the solar panels can continue charging the battery in this island mode. Not all battery installations include backup by default, so discuss this with your installer before the system is installed.

How long does a solar battery last?

Quality LFP solar batteries like the LIB HomeStack are rated for 8,000+ charge/discharge cycles, translating to 15 to 20+ years of daily use. The LIB HomeStack carries a 10-year warranty covering capacity and cycle performance. Lifespan depends on installation conditions, operating temperatures, depth of discharge, and the quality of the battery management system.

See the Science in Action on Your Own Roof

The LIB HomeStack turns sunlight into stored energy you can use after dark. LFP chemistry, 100% DoD, 8,000+ cycle life, and a BMS that handles everything. Book a site assessment through Autra Batteries Australia.

🏠 Australia's first home energy brand built exclusively for the home.

🧪 LFP chemistry. 314Ah large-format cells. Engineered for Australian conditions.

⚡ 100% DoD. Every kWh of capacity powers your home, not hidden in a buffer.

🔒 BMS monitors every cell. Layered safety: breakers, fire extinguishing, pressure relief.

📦 Three sizes: 16, 32, or 48 kWh. Stackable and modular for future expansion.

✅ CEC approved. Federal rebate eligible until 1 May 2026.
